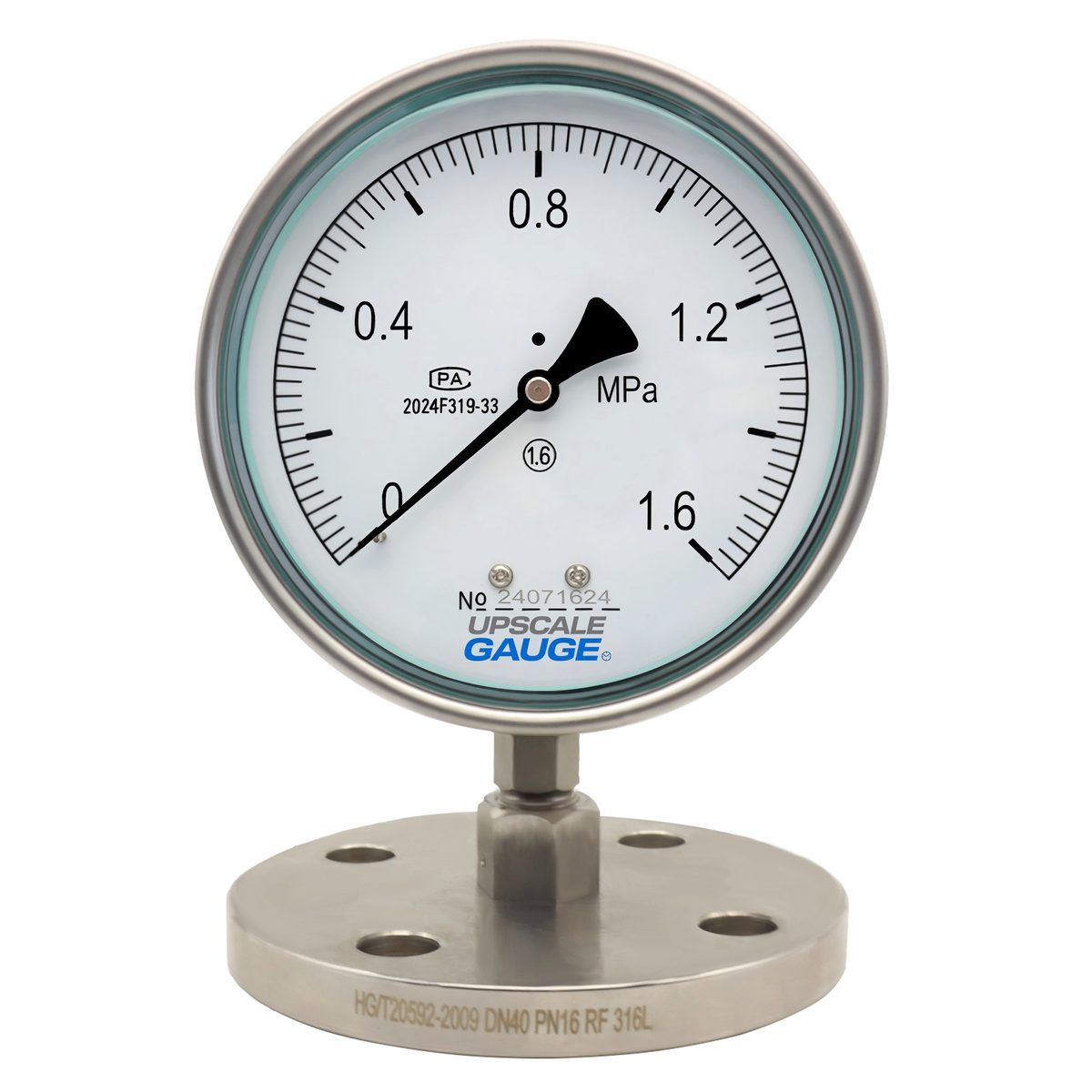

Flanged Diaphragm Pressure Gauge 150mm – YTP150MF

A 150mm radial diaphragm-sealed pressure gauge with flanged process connection (DN15 to DN50). The 316L diaphragm with optional PTFE lining handles corrosive, viscous or crystallizing media in large-scale plant piping.

Key Specifications

• Dial Size: 150mm
• Mounting: Radial (bottom connection)
• Measurement Range: 0.1 to 2.5 MPa, vacuum / negative pressure – custom ranges made to order
• Accuracy Class: 1.6
• Diaphragm Material: 316L stainless steel, PTFE lining optional
• Case Material: Stainless steel
• Process Connection: Flange DN15, DN20, DN25, DN40, DN50
• Filling: Glycerin

Key Features

• 316L diaphragm isolates the movement from the process
• PTFE lining optional for aggressive media
• Custom ranges made to order
• Stainless steel case

Applications

• Chemical and petrochemical
• Oil and gas processing
• Water treatment and distribution
• Pump and compressor systems
