Digital Pressure Gauges

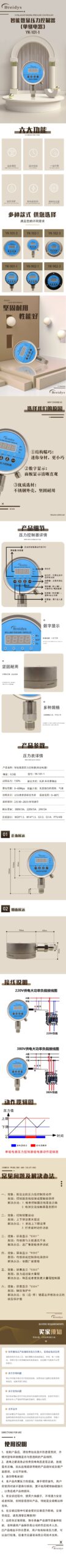

YK-101-1
Contact for Quote
Specifications
Display4-digit LCD with backlight
Accuracy±0.5% F.S. (25°C)
Pressure Range-0.1 to 100 MPa
Sensor TypePiezo-resistive silicon sensor
Connection1/4″ or 1/2″ PT, NPT, G
Power Supply3V CR2450 battery
Battery Life>2000 hours
Pressure UnitsMPa, bar, psi, kg/cm², mbar, kPa
Operating Temp-10°C to +50°C
IP RatingIP65
Key Features
- LCD display with backlight
- 6 pressure units selectable
- Peak hold function
- Auto shut-off (configurable)
- One-touch zero calibration
- High accuracy ±0.5% F.S.
Pressure Ranges
| Code | Range (MPa) | Range (bar) |
|---|---|---|
| Low | -0.1~1.6 -1~16 | -15~230 |
| Medium | -0.1~25 -1~250 | -15~3600 |
| High | -0.1~60 -1~600 | -15~8700 |
| Ultra High | -0.1~100 -1~1000 | -15~14500 |
Applications
Laboratory testingEquipment commissioningHydraulic system monitoringRefrigeration and HVACPneumatic testingMedical equipment
