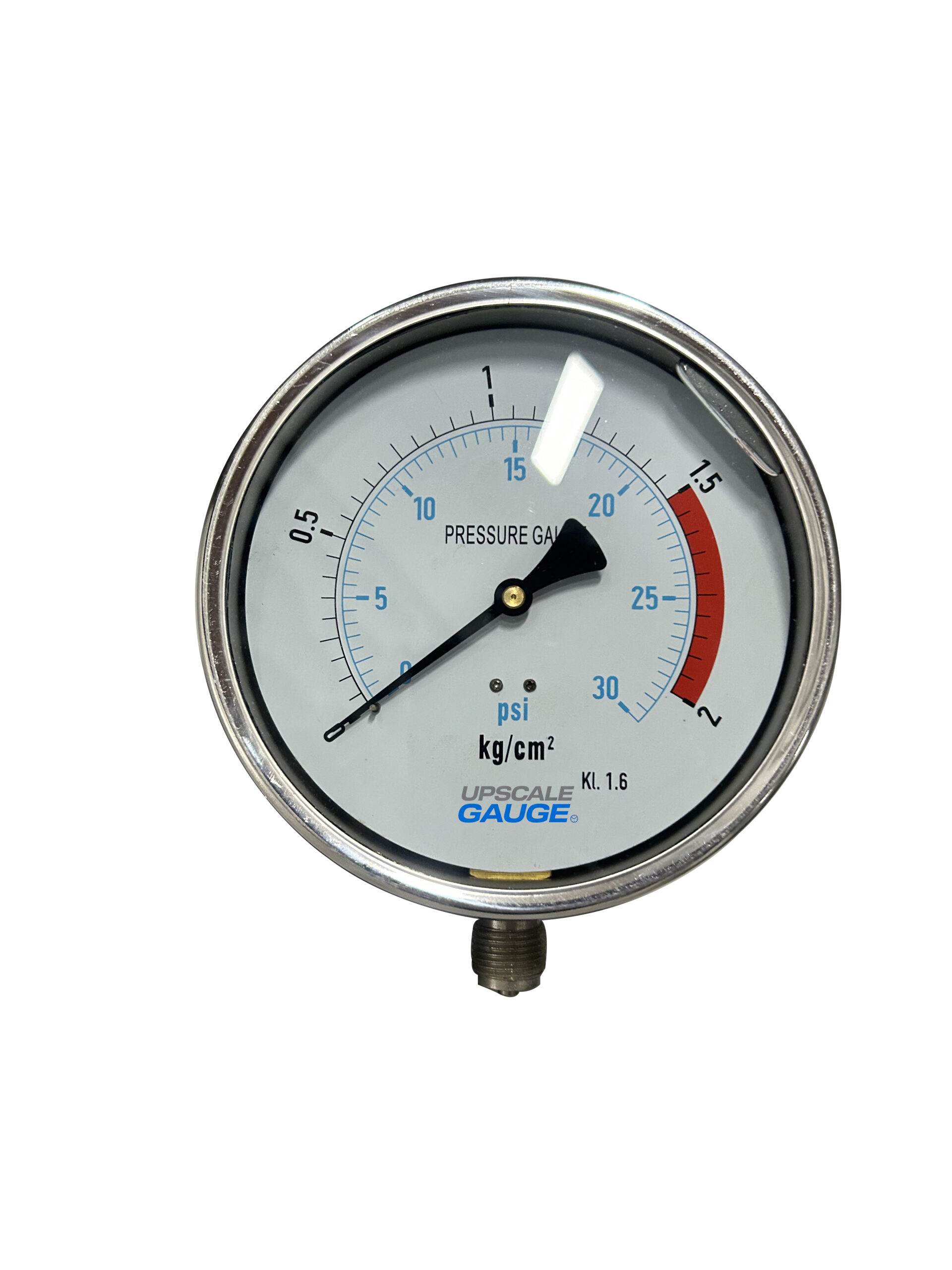

Vibration-Resistant Pressure Gauge 150mm Standard Mount – YN150-S

A general-purpose stainless steel pressure gauge built for industrial environments. With a robust 316L wetted parts construction and optional glycerin filling, this gauge delivers reliable pressure measurement across a wide range of applications.

Key Specifications

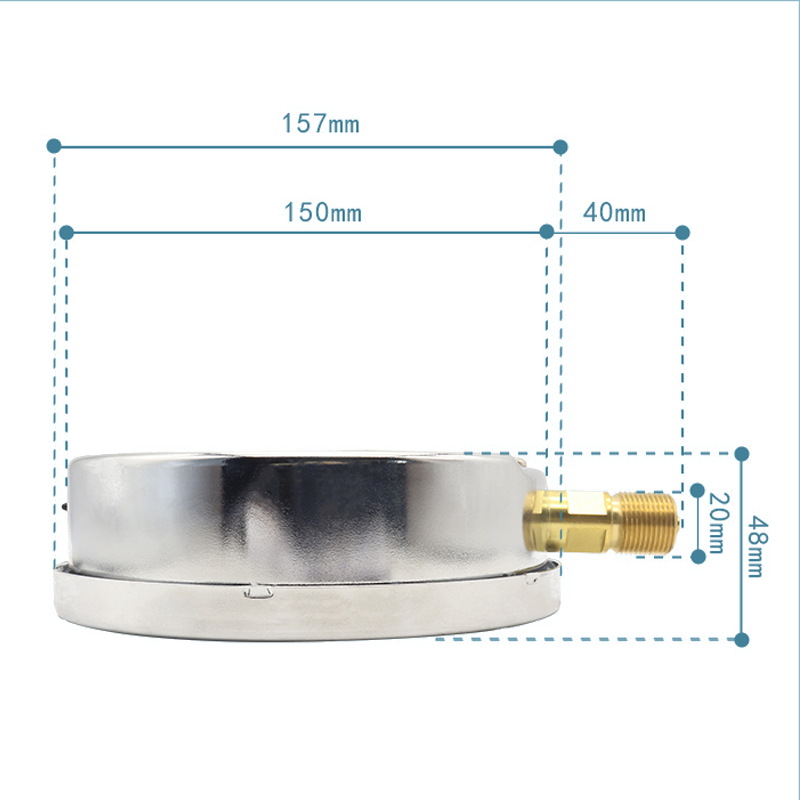

• Dial Size: 60mm / 75mm / 100mm / 150mm
• Accuracy Class: 1.0 / 1.6 / 2.5
• Pressure Range: -0.1 to 160 MPa
• Wetted Parts: 316L Stainless Steel
• Case Material: 304 Stainless Steel
• Process Connection: 1/4″ / 1/2″ NPT, BSP, G
• Filling: Glycerin (optional)
• IP Rating: IP65

Key Features

• All-stainless construction for corrosive environments
• Glycerin-filled option for vibration and pulsation
• Wide pressure range from vacuum to 160 MPa
• Multiple connection options for global compatibility
• Accuracy classes from 1.0 to 2.5

Applications

• Hydraulic and pneumatic systems
• Compressor and pump monitoring
• Oil and gas processing
• Water treatment and distribution
• General industrial pressure measurement
