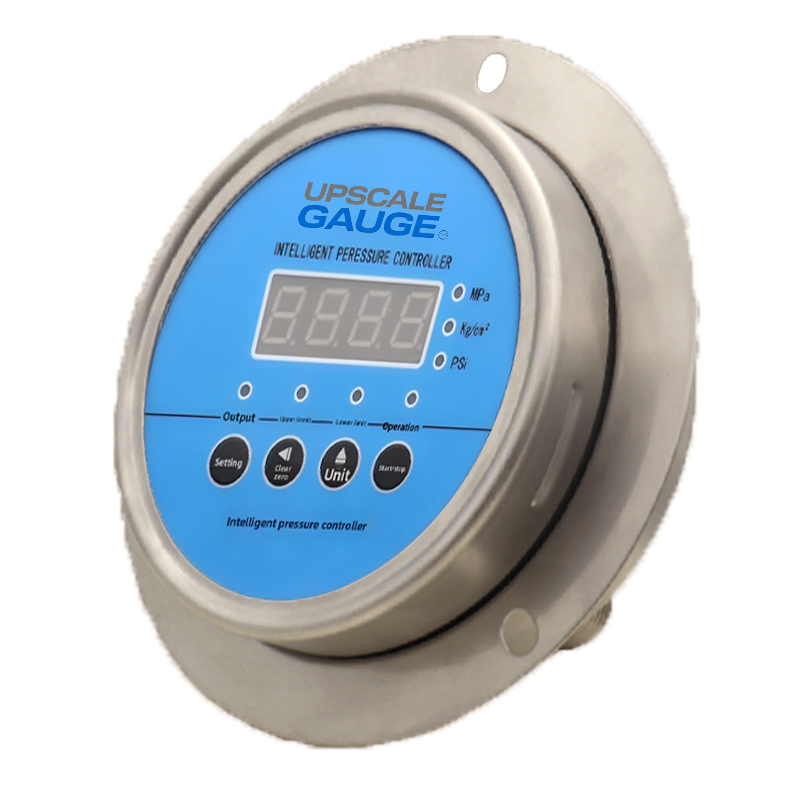

Intelligent Digital Display Pressure Controller (Dual Relays) – YK-102-3

An intelligent digital pressure controller with two relay outputs, so upper and lower limits can both be switched from one instrument. Features include delay on output, unit switching and automatic pressure detection.

Key Specifications

• Measurement range: 0 to 60 MPa – custom ranges made to order
• Accuracy class: 0.5
• Overload pressure: 150%
• Contact capacity: 380V/3A, 220V/5A, 24V/5A
• Switch output: Dual relays
• Installation thread: M20×1.5, M14×1.5, G1/2, G1/4, PT1/4

Key Features

• Local digital reading and switch output in one instrument
• 150% overload allowance
• Five thread standards stocked
• Custom ranges made to order

Applications

• Pump and compressor control
• Upper and lower limit alarming
• Hydraulic equipment
• Automation machinery
