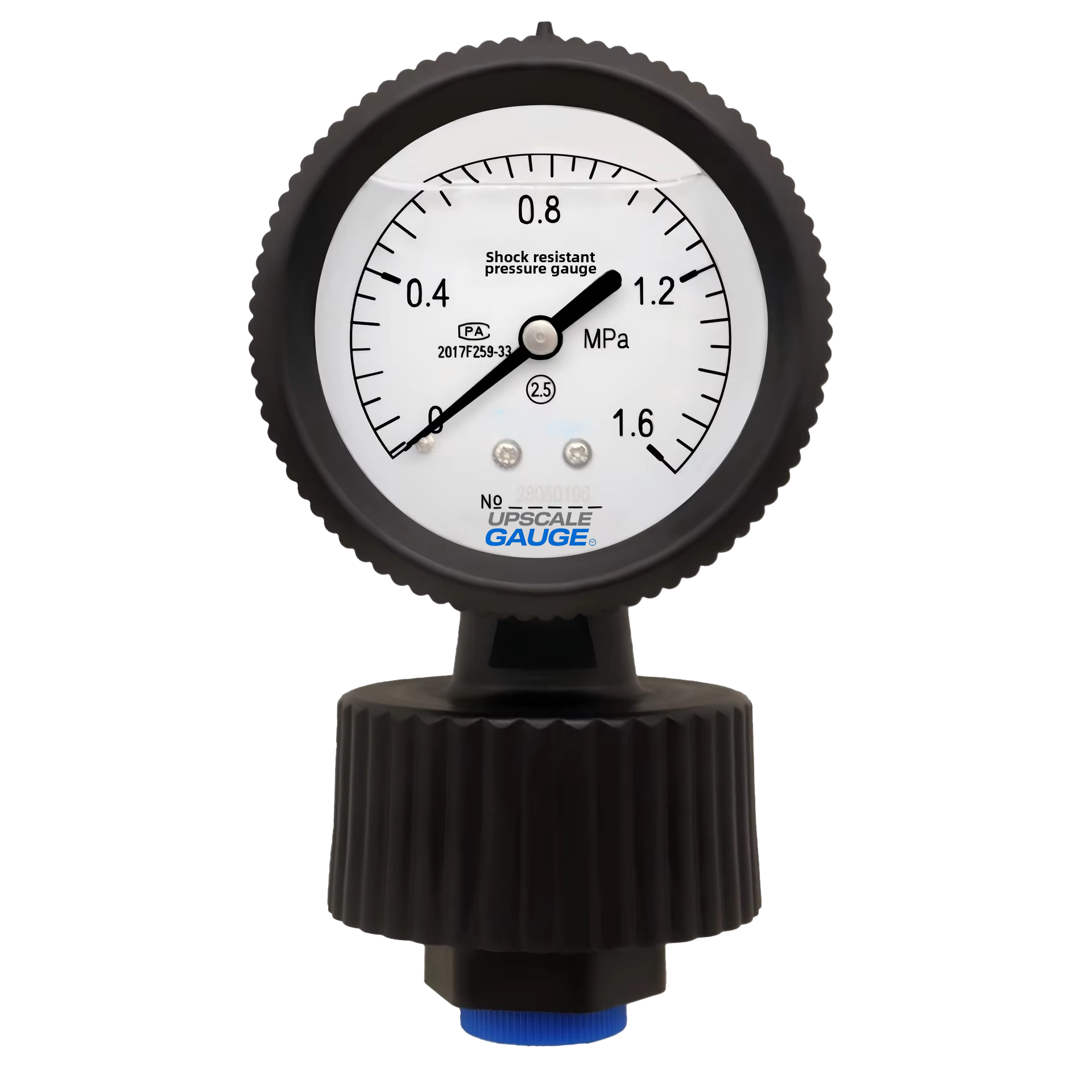

PP Diaphragm Pressure Gauge 60mm – YPP60

A 60mm diaphragm gauge with a polypropylene case and a PTFE diaphragm. Built for aggressive media that would attack stainless steel — strong acids, alkalis and chlorine service. Glycerin-filled to damp vibration.

Key Specifications

• Dial Size: 60mm
• Accuracy Class: 2.5
• Pressure Range: 0.1 to 2.5 MPa, vacuum and negative pressure – custom ranges made to order
• Case Material: Polypropylene (PP)
• Diaphragm Material: PTFE
• Filling: Glycerin
• Process Connection: G1/2 female thread

Key Features

• PP case and PTFE diaphragm for highly corrosive media
• Glycerin-filled for vibration duty
• Handles acids, alkalis and chlorine service
• kPa-to-MPa coverage on the 60mm dial

Applications

• Strong acid and alkali service
• Chlorine and bleaching plants
• Electroplating and surface treatment
• Aggressive chemical dosing
