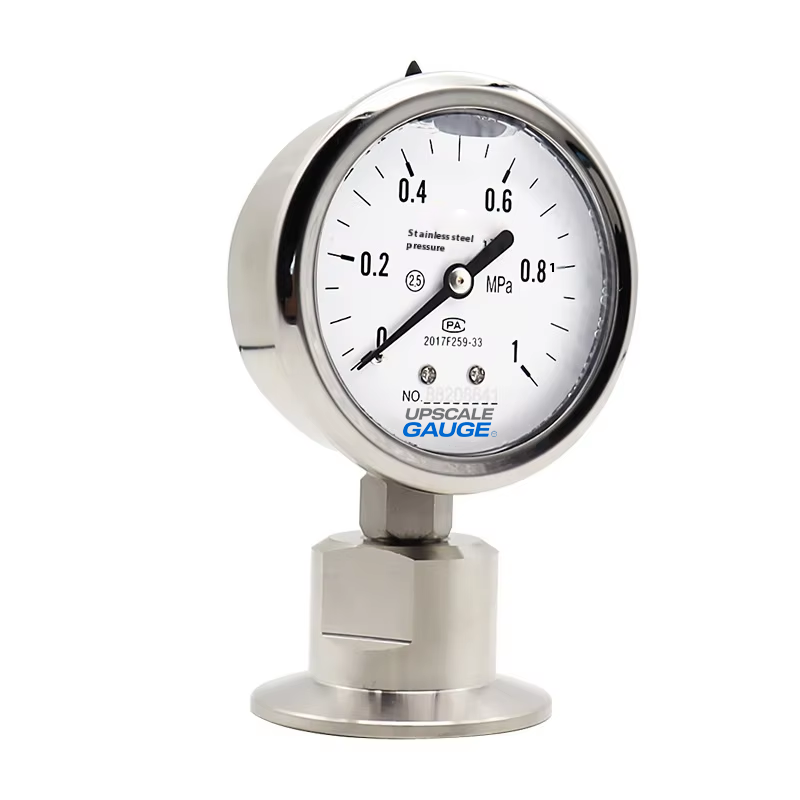

Sanitary Diaphragm Pressure Gauge 60mm Clamp – YTP60

A 60mm sanitary diaphragm gauge on a tri-clamp connection, for food, beverage, dairy and pharmaceutical lines. The clamp fitting comes apart without tools for cleaning, and the 316L diaphragm isolates the instrument from the product.

Key Specifications

• Dial Size: 60mm
• Mounting: Radial (bottom connection)
• Accuracy Class: 2.5
• Pressure Range: 0.1 to 2.5 MPa, vacuum and negative pressure – custom ranges made to order
• Diaphragm Material: 316L stainless steel
• Case Material: Stainless steel
• Filling: Glycerin
• Process Connection: Tri-clamp 50.5 / 64

Key Features

• Tri-clamp fitting breaks down for cleaning without tools
• 316L diaphragm isolates the instrument from the product
• Glycerin-filled for vibration duty
• PTFE lining available

Applications

• Food and beverage processing
• Dairy and brewing
• Pharmaceutical and biotech
• CIP and SIP cleaning cycles
