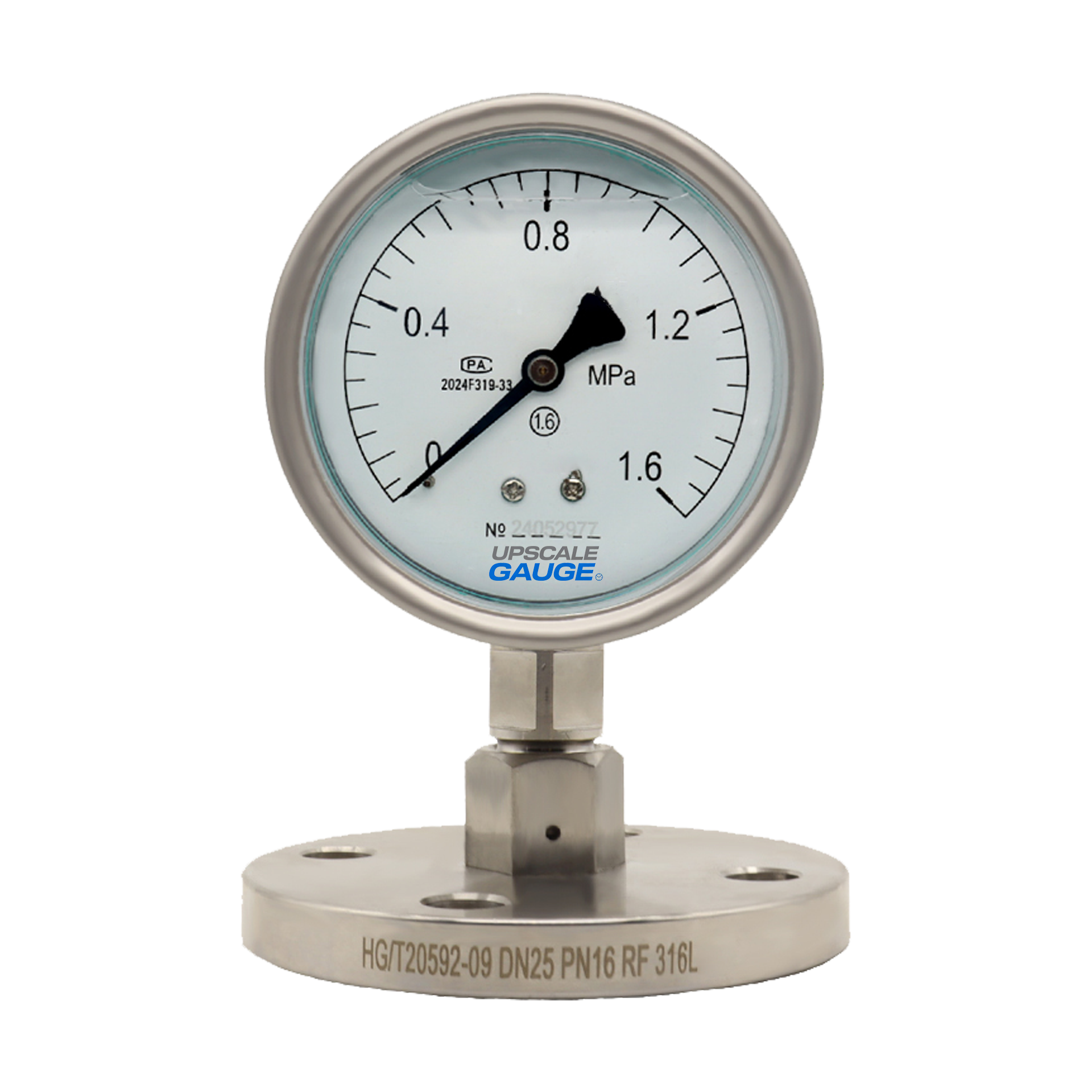

Flanged Diaphragm Pressure Gauge 100mm – YTP100MF

A 100mm diaphragm gauge on an open flange, sized DN15 to DN50. The 316L diaphragm sits flush with the process so there is no dead leg for the medium to settle in. PTFE lining is available for aggressive service.

Key Specifications

• Dial Size: 100mm
• Mounting: Radial (bottom connection)
• Accuracy Class: 1.6
• Pressure Range: 0.1 to 2.5 MPa, vacuum and negative pressure – custom ranges made to order
• Diaphragm Material: 316L stainless steel, PTFE lining optional
• Case Material: Stainless steel
• Filling: Glycerin
• Process Connection: Flange DN15, DN20, DN25, DN40, DN50

Key Features

• Open flange from DN15 to DN50
• Flush diaphragm leaves no dead leg for the medium to settle
• 316L diaphragm with PTFE lining option
• 1.6 class on the 100mm dial

Applications

• Viscous and settling media
• Chemical and petrochemical
• Pulp and paper stock lines
• Waste water and sludge
