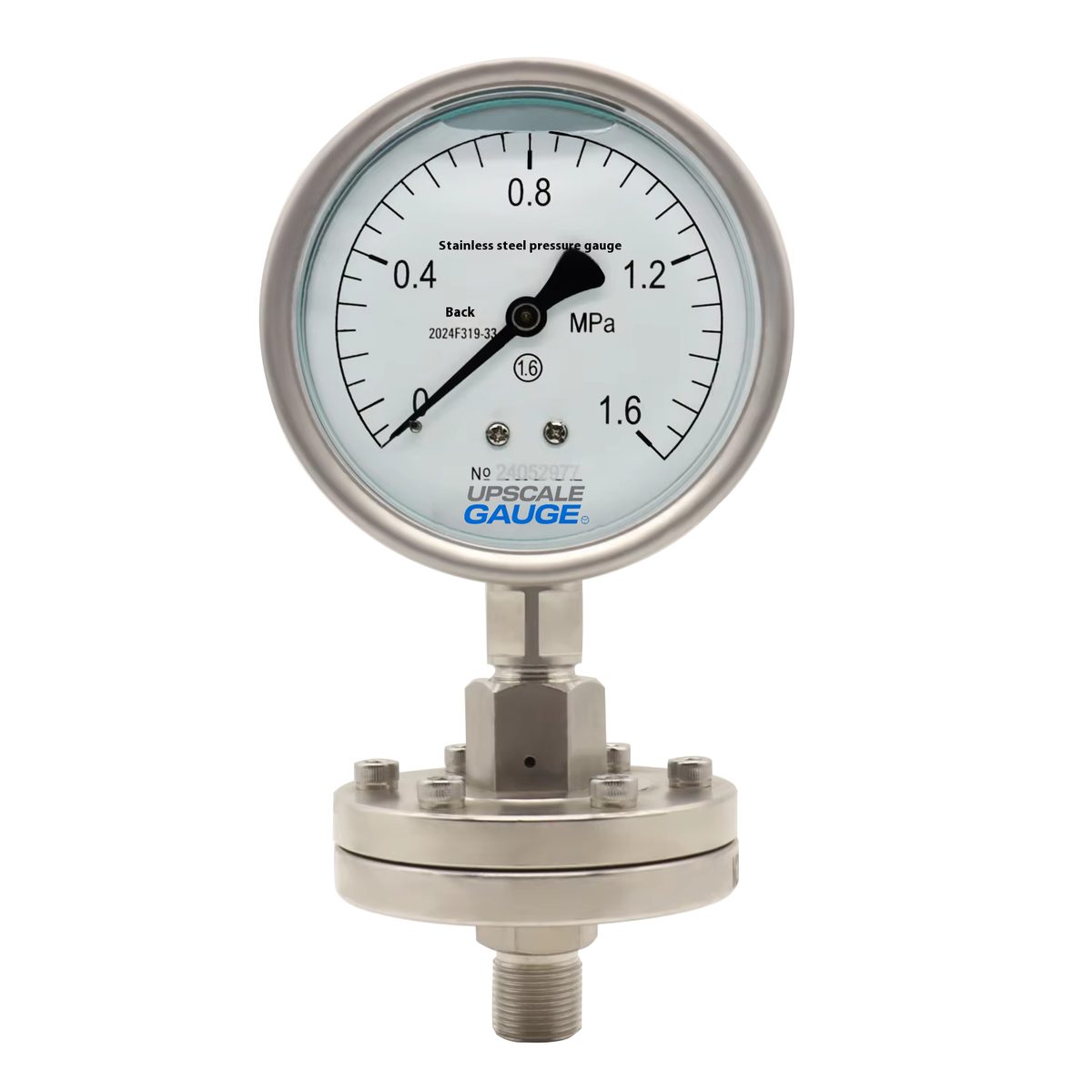

Threaded Diaphragm Pressure Gauge 100mm – YTP100ML

A 100mm radial diaphragm-sealed pressure gauge with threaded connection. The 316L diaphragm (PTFE lining optional) isolates the gauge movement from corrosive, viscous or crystallizing process media.

Key Specifications

• Dial Size: 100mm
• Mounting: Radial (bottom connection)
• Measurement Range: 0.1 to 2.5 MPa, vacuum / negative pressure – custom ranges made to order
• Accuracy Class: 1.6
• Diaphragm Material: 316L stainless steel, PTFE lining optional
• Case Material: Stainless steel
• Process Connection: M20x1.5, G1/2, PT1/2, NPT1/2
• Filling: Glycerin

Key Features

• 316L diaphragm isolates the movement from the process
• PTFE lining optional for aggressive media
• Custom ranges made to order
• Stainless steel case

Applications

• Chemical and petrochemical
• Oil and gas processing
• Water treatment and distribution
• Pump and compressor systems
