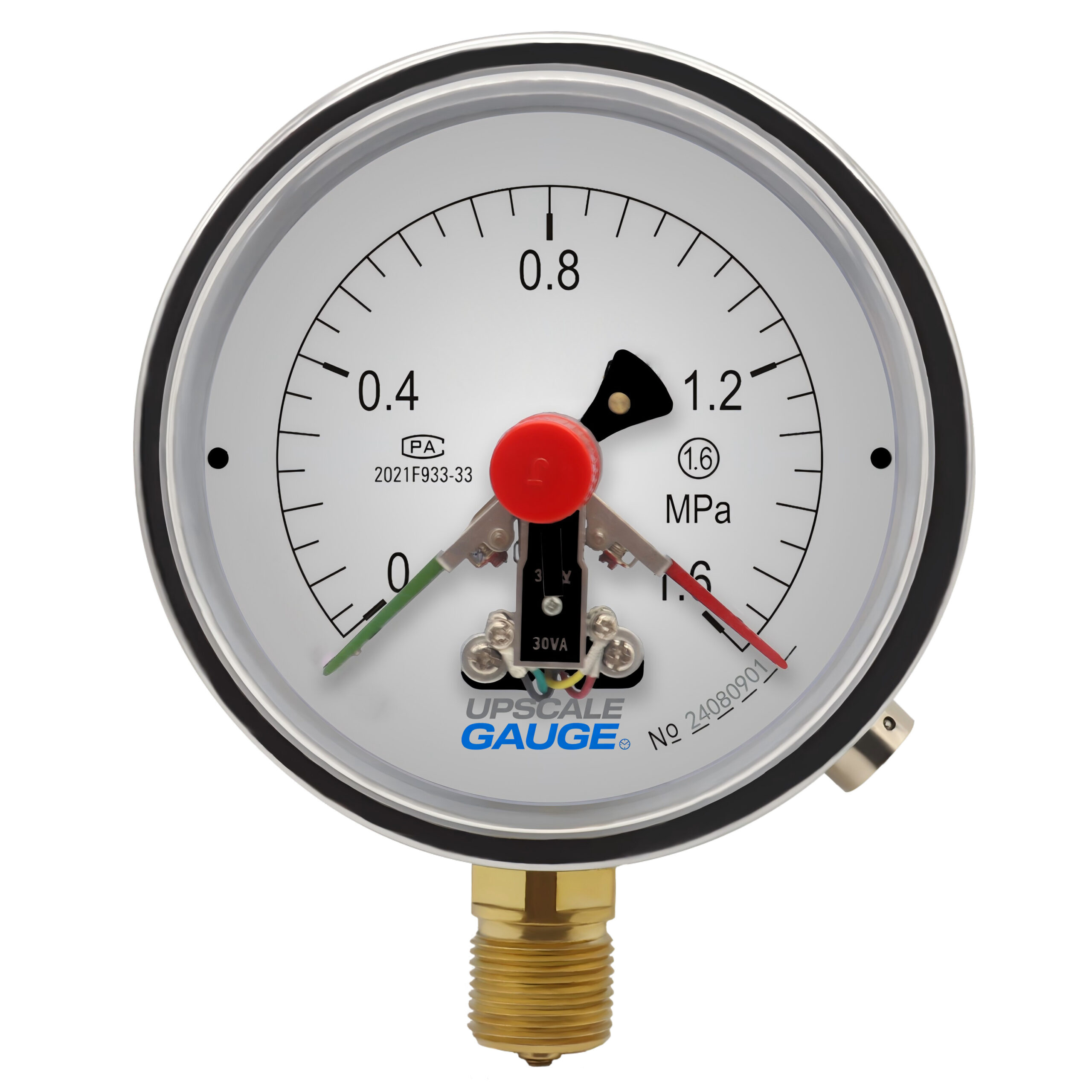

Shock-Resistant Electric Contact Pressure Gauge 100mm – YNXC100

A 100mm radial electric contact pressure gauge with a liquid-filled case. As the pointer rises it meets the upper-limit set pointer and sends a signal to stop the source; falling to the lower-limit pointer starts it again. One instrument both indicates and switches.

Key Specifications

• Dial Size: 100mm
• Mounting: Radial (bottom connection)
• Accuracy Class: 1.6
• Pressure Range: 0.1 to 60 MPa, vacuum – custom ranges made to order
• Case Material: Chrome-plated iron
• Connection / Movement: Copper / copper
• Filling: Silicone oil (vibration-resistant)
• Process Connection: M20x1.5, G1/2
• Contact Capacity: 380V/30VA

Key Features

• Silicone-oil filled for vibration and pulsation duty
• Upper and lower limit contacts switch the source directly
• 1.6 class on the 100mm dial
• Two thread standards stocked

Applications

• Pump and compressor start/stop control
• Chemical and petrochemical
• Power station auxiliary systems
• Automatic pressure control loops
