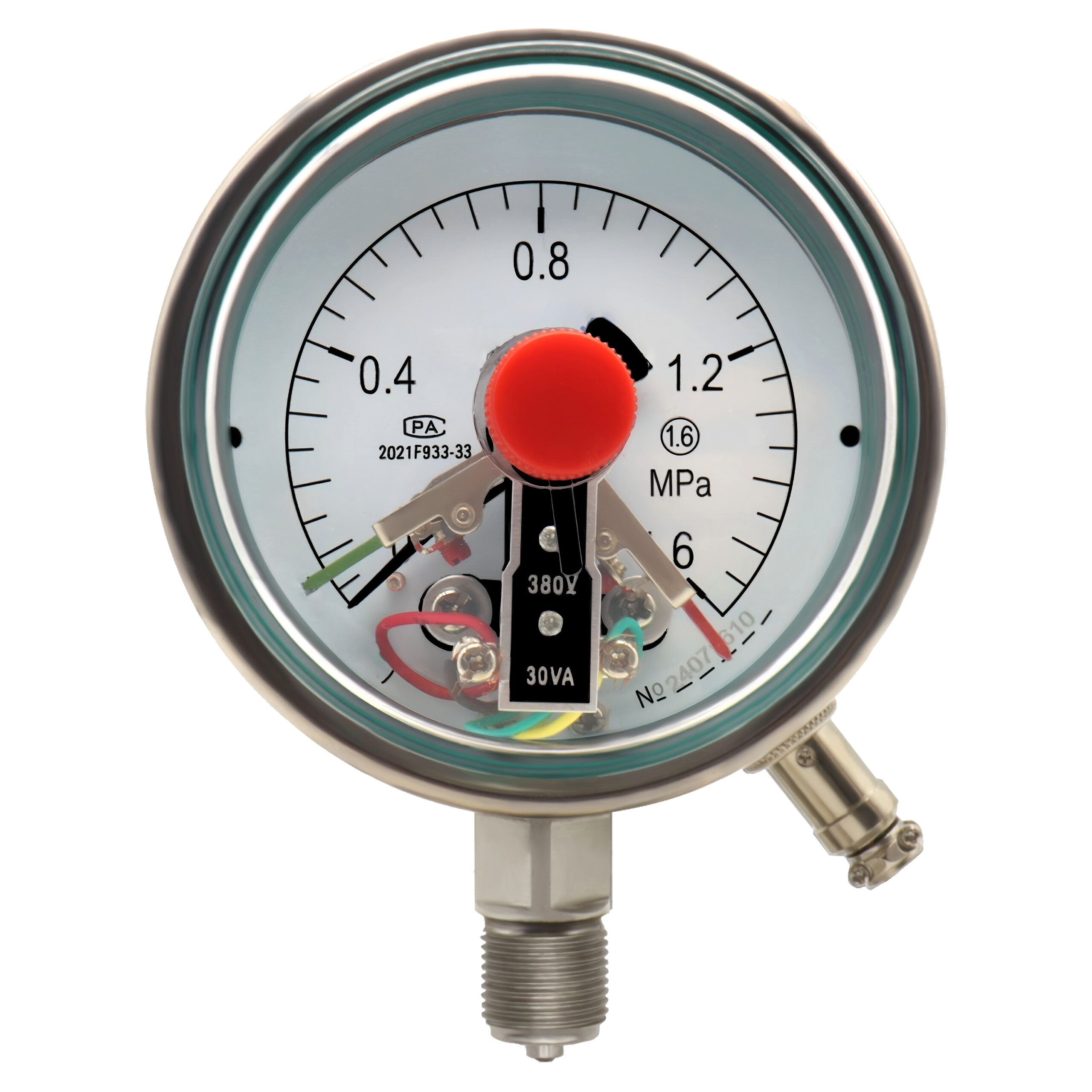

Stainless Steel Electric Contact Pressure Gauge 100mm – YNBFXC100

A stainless steel electric contact pressure gauge with a 100mm dial. Case, wetted parts and movement are all stainless steel, so it holds up in wet or corrosive locations where a painted case would not. The contact output switches a load or alarm at the set point without a separate control box.

Key Specifications

• Dial Size: 100mm
• Mounting: Radial (bottom connection)
• Accuracy Class: 1.6
• Pressure Range: 0.1 to 60 MPa, vacuum – custom ranges made to order
• Case Material: Stainless steel
• Connection / Movement: Stainless steel / stainless steel
• Filling: Silicone oil filling optional
• Process Connection: M20x1.5, G1/2
• Contact Capacity: 380V/30VA

Key Features

• Stainless steel case, connectors and movement
• 1.6 accuracy class
• Vibration-resistant silicone oil filling optional
• Custom ranges made to order

Applications

• Pump and compressor control
• Upper and lower limit alarming
• Water treatment and distribution
• Chemical and petrochemical
