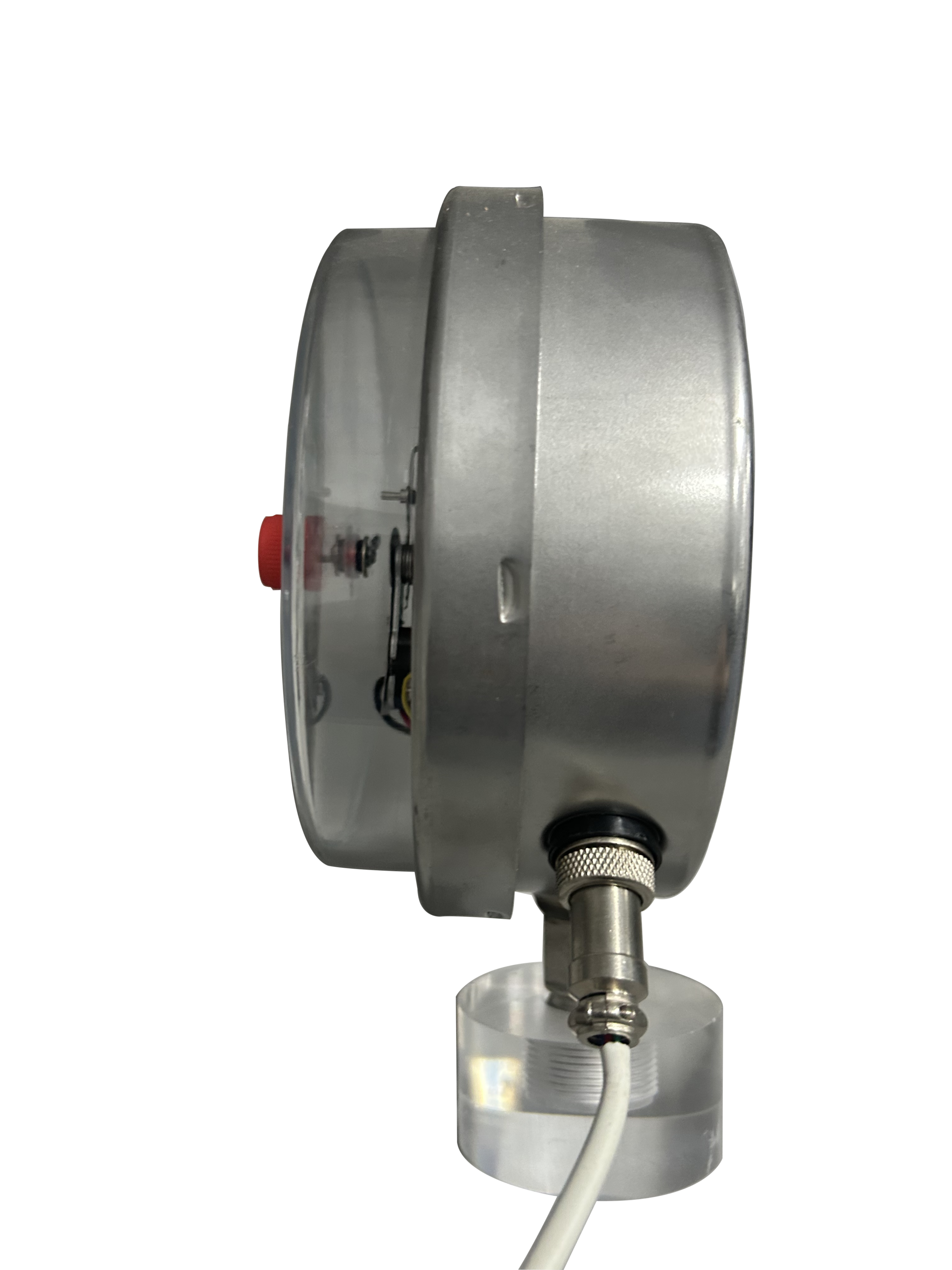

Stainless Steel Electric Contact Pressure Gauge 150mm – YNXC150BF

A 150mm radial electric contact pressure gauge in stainless steel throughout — case, connection and movement. Chosen where the ambient or the medium would attack a plated case. Vibration-resistant silicone filling is available as an option.

Key Specifications

• Dial Size: 150mm
• Mounting: Radial (bottom connection)
• Accuracy Class: 1.6
• Pressure Range: 0.1 to 60 MPa, vacuum – custom ranges made to order
• Case Material: Stainless steel
• Connection / Movement: Stainless steel / stainless steel
• Filling: Silicone oil filling optional
• Process Connection: M20x1.5, G1/2
• Contact Capacity: 380V/30VA

Key Features

• All-stainless-steel case, connection and movement
• Magnetic-assisted contact for positive switching
• Silicone-oil vibration filling available as an option
• 150mm dial for readability at distance

Applications

• Corrosive and washdown environments
• Chemical and petrochemical
• Pump and compressor control
• Water treatment and distribution
