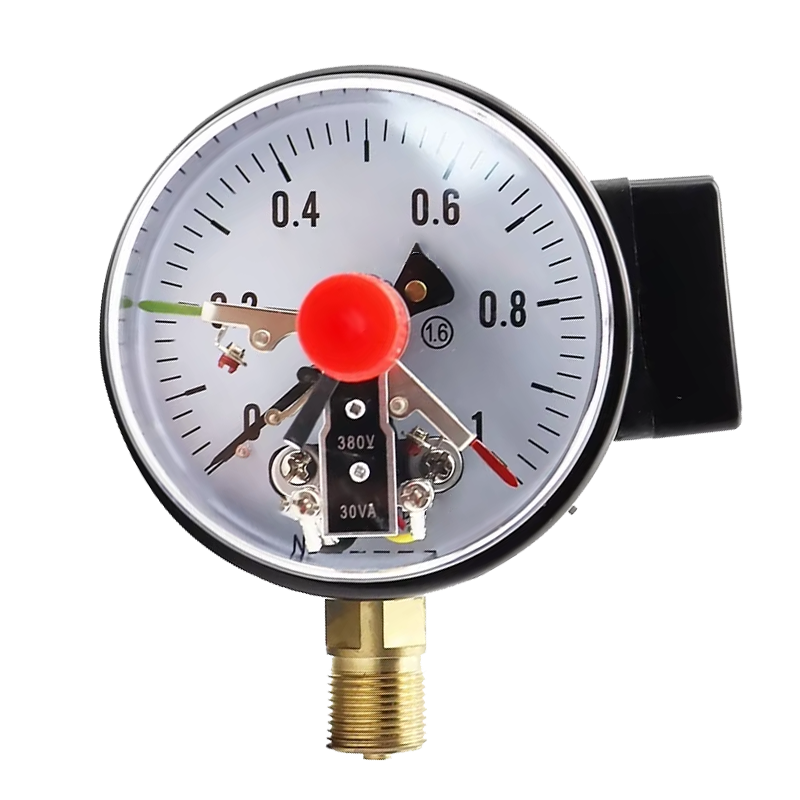

Electric Contact Pressure Gauge 100mm – YXC100

A 100mm radial electric contact pressure gauge for switching duties. The pointer carries a contact that closes against an adjustable set-point pointer, so the instrument switches a load or alarm directly without a separate control box. Electrophoresis-coated case with copper wetted parts.

Key Specifications

• Dial Size: 100mm
• Mounting: Radial (bottom connection)
• Accuracy Class: 1.6
• Pressure Range: 0.1 to 60 MPa, vacuum – custom ranges made to order
• Case Material: Electrophoresis-coated steel
• Connection / Movement: Copper / copper
• Filling: Not liquid-filled
• Process Connection: M20x1.5, G1/2
• Contact Capacity: 380V/30VA

Key Features

• Electrophoresis-coated steel case
• 1.6 accuracy class
• Copper connector and movement
• Custom ranges made to order

Applications

• Pump and compressor control
• Upper and lower limit alarming
• Water treatment and distribution
• General industrial automation
