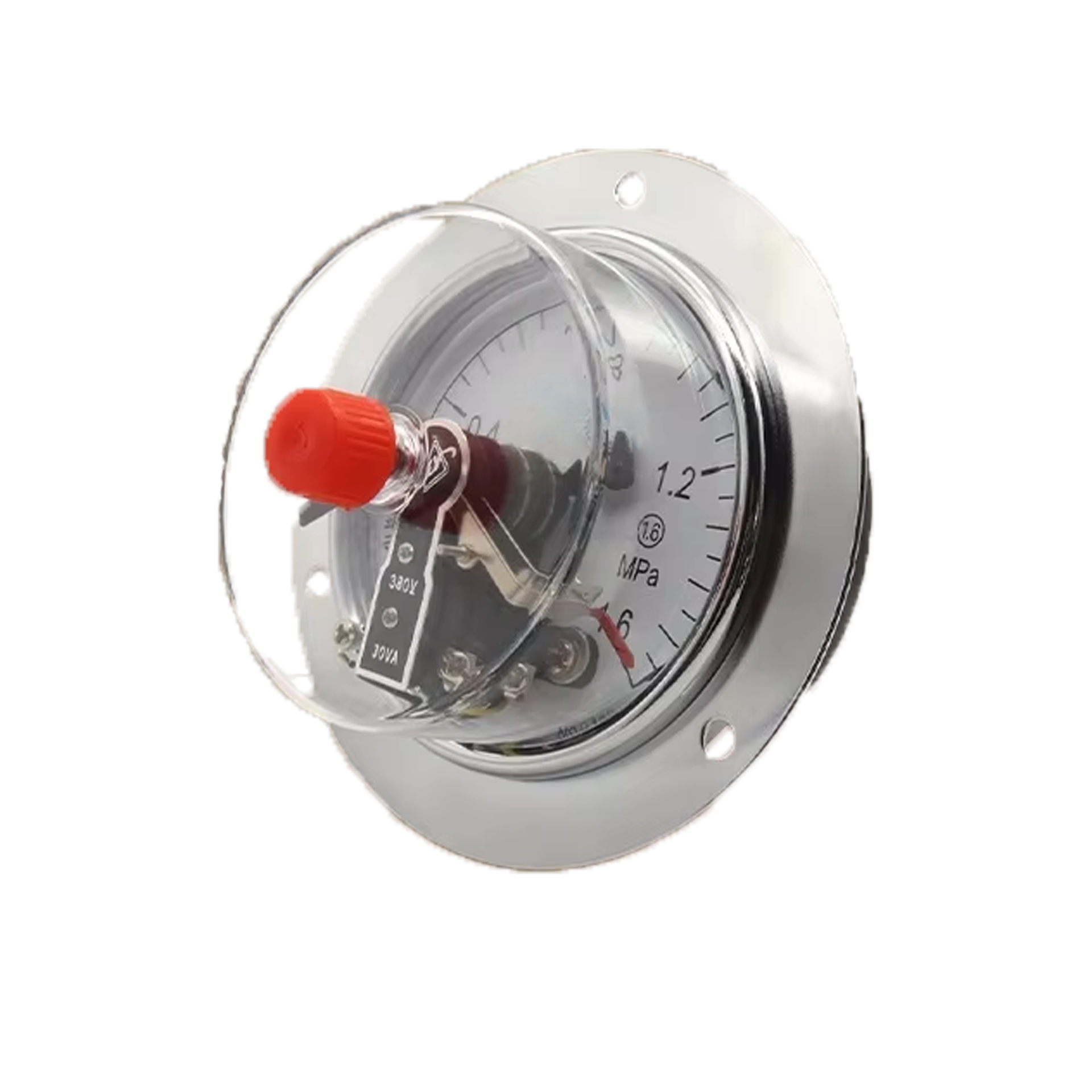

Axial Panel-Mounted Electric Contact Pressure Gauge 100mm – YXC100ZT

A 100mm axial electric contact pressure gauge built for panel mounting. The connection sits at the back so the dial faces out from a control panel or cabinet, with the contact output wired straight to the starter or alarm circuit. Electrophoresis-coated case with copper wetted parts.

Key Specifications

• Dial Size: 100mm
• Mounting: Axial (back connection), panel mounted
• Accuracy Class: 1.6
• Pressure Range: 0.1 to 60 MPa, vacuum – custom ranges made to order
• Case Material: Electrophoresis-coated steel
• Connection / Movement: Copper / copper
• Filling: Not liquid-filled
• Process Connection: M20x1.5, G1/2
• Contact Capacity: 380V/30VA

Key Features

• Electrophoresis-coated steel case
• 1.6 accuracy class
• Copper connector and movement
• Custom ranges made to order

Applications

• Pump and compressor control
• Upper and lower limit alarming
• Water treatment and distribution
• General industrial automation
